TCS

Vehicle Wash Systems - Typhoon Vehicle Wash System

The improved design of the TCS Typhoon will make every second count to deliver the required clean result. The Typhoon underbody and wheel wash system delivers a very high volume of pressurised water to all areas of the chassis and wheels. The lower exterior surface of all vehicles and the wheels will have all mud and soil removed by the high volume output. The wash is fully automatic throughout and requires no operator intervention.

The new design incorporates the high volume /pressure wash jets that will remove all mud and grit from the tyres, underbody/chassis, and lower parts of the truck body

Relocatable

The Typhoon vehicle wash equipment is fully relocatable and can be easily reinstalled on new civil works, for a minimal cost.

All over body wash

Additional arches can be added to the underbody wash system to give a full body wash.

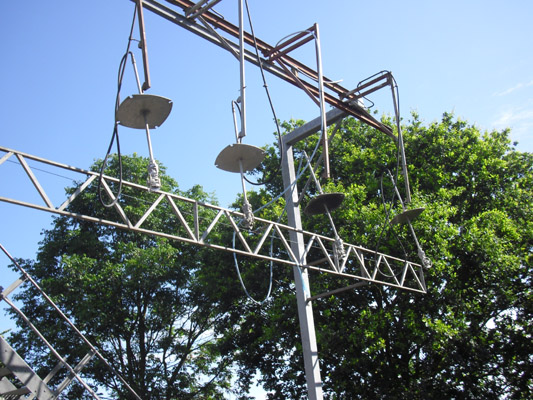

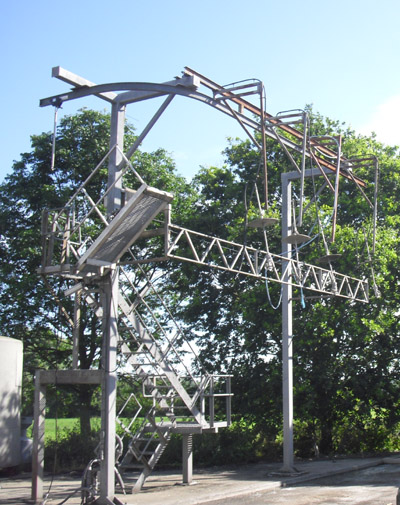

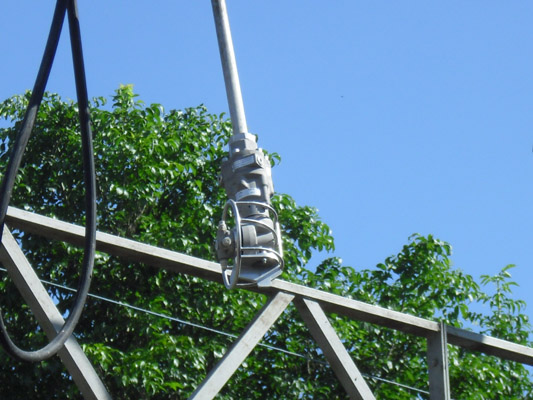

"Tornado" Internal Tanker Wash

2000 litres per minut at high pressure, the internal tank wash system is designed to wash the inside of tankers carrying powdered cargo - flour, cement, etc.

The highly effective foam application arch can be installed on any of the TCS full body systems. The total all over full foam applicator can be adapted to retro fit any existing wash system currently in use.

Drive through Brush wash

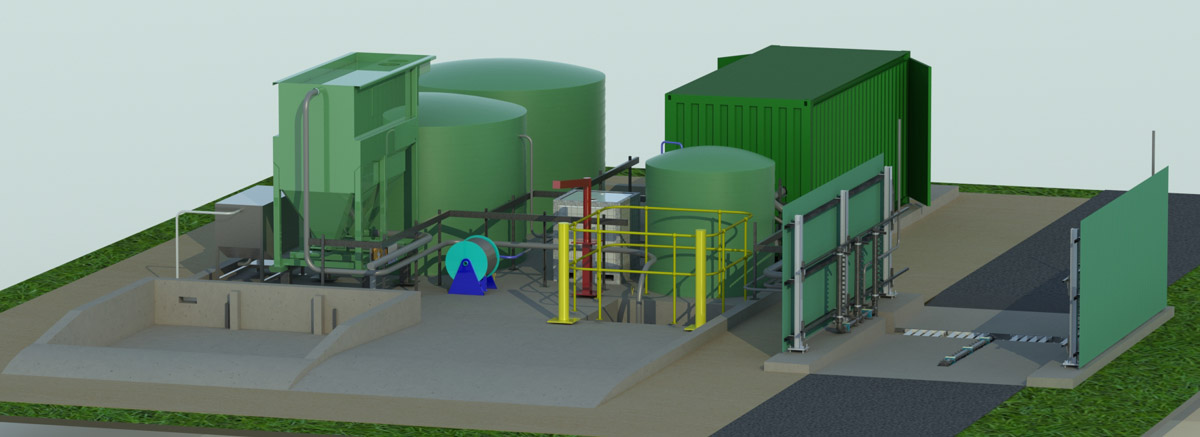

Waste water treatment and Recycle System

The heavy sludge is efficiently removed by a three stage process consisting of

• the primary settlement pit to retain the heavy stone and rubble
• the automatic injection of an approved flocculent
• the installation of a mechanical separator that requires minimal maintenance even during the busy periods

The above ground sediment separator uses gravity to simplify the removal of the collected sludge from the base of the separator.

The cost of water today demands an efficient waste water treatment system to be available when large volumes of water are being called for. Flocculent used in the treatment system will enhance the effectiveness of the high volume sediment separators to ensure a fast return of cleaned water to the header tank, available for the next wash.

Water disinfection can be achieved by either an automated chorline dosing system or by ozone injection system. Ozone is generated on site from atmospheric oxygen and has no consumables other than power.
